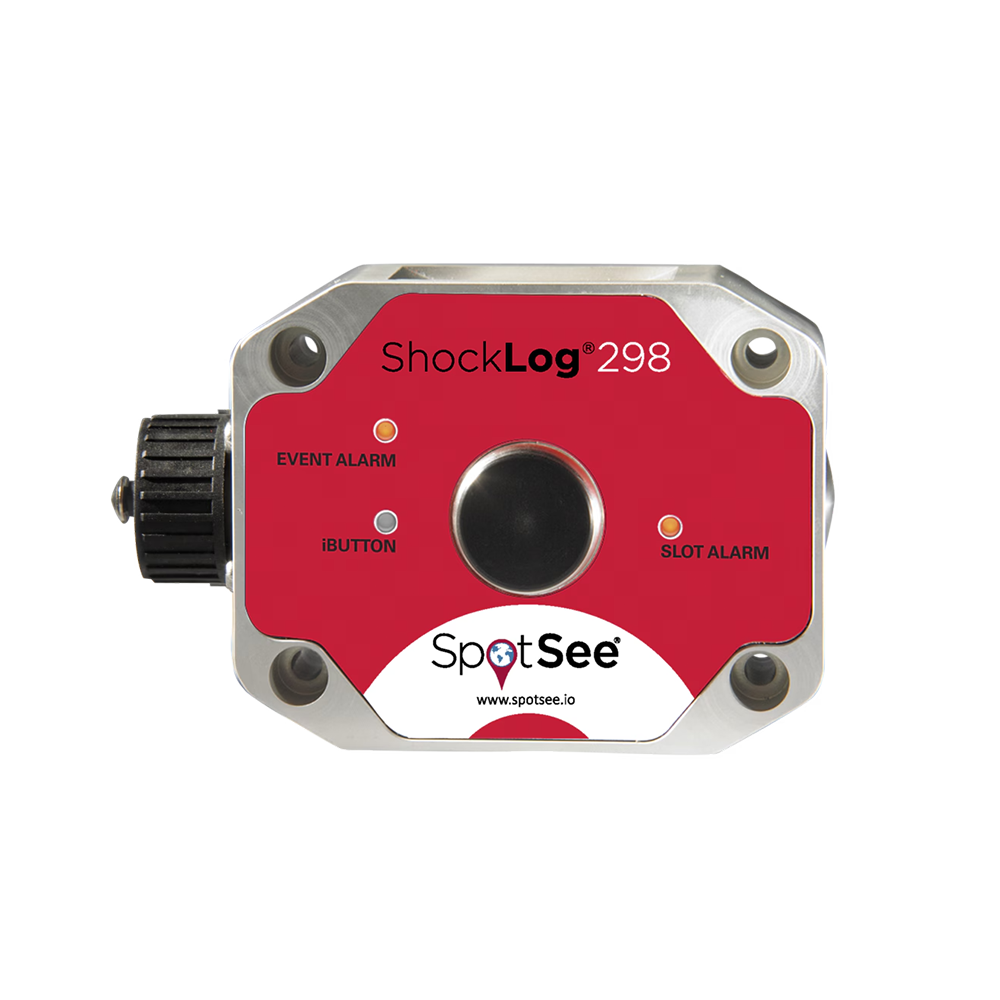

ShockLog 298

The ShockLog 298 is SpotSee’s most advanced and configurable impact recorder, engineered for extreme monitoring precision. It captures acceleration up to ±200G along with temperature, humidity, pressure, tilt, and roll, providing full visibility into shipment and asset conditions. When paired with optional cellular, GPS, or satellite modules, the ShockLog 298 enables real-time alerts and global tracking.

This high-performance impact recorder logs detailed journey profiles, including up to 870 impact events with internal logging and summary alarms. Built with an IP67-rated, rugged enclosure, the ShockLog 298 is tamperproof and reliable in demanding environments. Its USB and iButton® control ensure simple configuration and secure data access.

Ideal for aerospace, defense, energy, and other industries where accuracy is mission-critical, the ShockLog 298 delivers pinpoint monitoring and accountability. For South African businesses handling sensitive or high-value shipments, it provides unparalleled protection and traceability across the supply chain.

  • Records up to 870 detailed impact events

  • Internal sensors: shock (triaxial), temperature, optional humidity

  • Add-ons: GPS, Cellular, and Satellite modules

  • IP67 rated with full RF shielding

  • Wake-up, alarm, and warning thresholds (5–95%)

  • User-definable filters: 10Hz to 250Hz

  • Live LED alarm indicators

  • No software needed to download summary via iButton

  • Excel & MATLAB export-ready reports

  • Designed for rugged, unmanned shipments

ParameterValue
Acceleration Range±1G to ±200G
Event Storage870 detailed events + 128 summaries
Time Slot Data262,000+ slots (for journey profiling)
Cut-off Frequencies10Hz, 40Hz, 50Hz, 90Hz, 120Hz, 250Hz (programmable)
Battery Type2x 3.6V lithium OR 2x 1.5V alkaline AA
Battery LifeUp to 18 months (lithium)
Temp Range (Internal)-40°C to 85°C
Temp Accuracy±2°C
Humidity Range (opt.)0 – 100% RH
Humidity Accuracy±3% RH
Dew Point Range-40°C to 85°C, 0 – 100% RH
Dew Point Accuracy±2°C
Dimensions123 × 84 × 55 mm / 4.8 × 3.1 × 2.2 in
Weight515g (1.1 lbs, w/o battery)
HousingIP67, RF-shielded
Data TransferUSB + iButton®
  • Military or aerospace cargo handling

  • Wind turbine, solar panel, and transformer transport

  • Nuclear or oil & gas tool monitoring

  • Automotive component shipping

  • Crane, barge, rail, or multi-modal transport

  • Precision lab or medical equipment storage and logistics

  • Select the required impact range (±1G to ±200G) and frequency filter.

  • Configure alarms and thresholds via the ShockLog Windows® software.

  • Mount device using adhesive, screws, or custom brackets.

  • Activate and deploy the unit – LEDs provide visual status alerts.

  • Use USB or iButton to extract journey reports.

  • If equipped, receive live alerts via cellular or satellite modules.

  • Export reports into Excel, PDF, or analytics software

N/A

  • Aerospace & Defense

  • Automotive

  • Oil & Gas

  • Energy & Power

  • Logistics

  • Electronics

  • Medical & Research

  • Heavy Industrial Manufacturing
